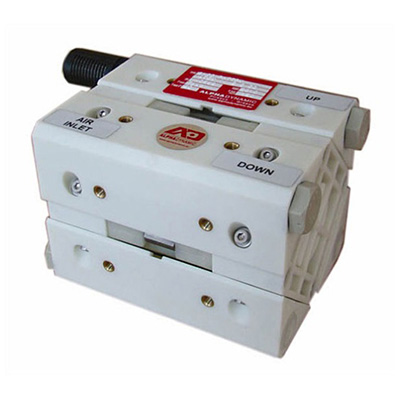

MINIPUMP 017 – 3/8”
For delivery rates up to 17 L/min
Technical data
| Atex Cerification : | STANDARD : II 3G Ex h IIB T4 Gc – II 3D Ex h IIIB 135°C Dc
CONDUCT : II 2G Ex h IIB T4 Gb – II 2D Ex h IIIB 135°C Db |
| Construction Material: | PP , PP+CF,ECTFE |
| Intake/delivery connections : | G 1/4” |
| Air connection : | 3/8” |
| Max. flow rate : | 17 L/min |
| Max. flow pressure : | 7 bar |
| Operating pressure : | Min. 2 bar – Max. 7 bar |
| Max. suction head : | 3 m |
| Max. size of solids : | 0,5 mm |
| Max. operating Temperature : | PP 60⁰C, ECTFE 95⁰C |
| Weight PP, PP+CF : | 1 Kg |
| Weight ECTFE : | 1.5 Kg |
